Chapa Lisa - Alumínio

Ref: al-chapalisa

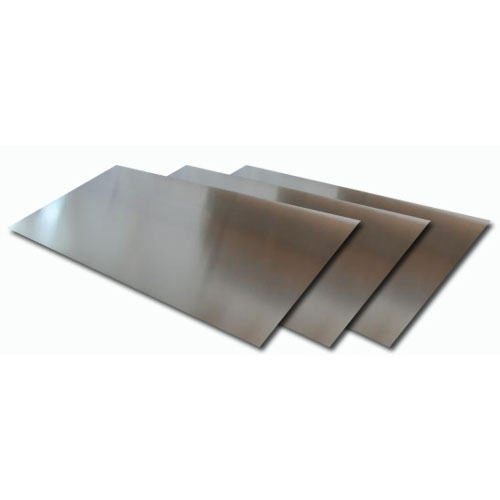

Chapas de Alumínio Lisa

Medidas e pesos orientativos
Espessura (mm)	Comprimento (mm)	Largura (mm)	Peso (kg/m²)	Peso (Kg/pç)
0,30	2000	1000	0,810	1,620
0,40	2000	1000	1,080	2,160
0,40	2000	1250	1,080	2,700
0,50	2000	1000	1,350	2,700
0,50	2000	1250	1,350	3,375
0,50	3000	1000	1,350	4,050
0,50	3000	1250	1,350	5,063
0,60	2000	1000	1,620	3,240
0,60	2000	1250	1,620	4,050
0,60	3000	1000	1,620	4,860
0,60	3000	1250	1,620	6,075
0,70	2000	1000	1,890	3,780
0,70	2000	1250	1,890	4,725
0,70	3000	1000	1,890	5,670
0,70	3000	1250	1,890	7,088
0,80	2000	1000	2,160	4,320
0,80	2000	1250	2,160	5,400
0,80	3000	1000	2,160	6,480
0,80	3000	1250	2,160	8,100
0,90	2000	1000	2,430	4,860
0,90	2000	1250	2,430	6,075
0,90	3000	1000	2,430	7,290
0,90	3000	1250	2,430	9,113
1,00	2000	1000	2,700	5,400
1,00	2000	1250	2,700	6,750
1,00	3000	1000	2,700	8,100
1,00	3000	1250	2,700	10,125
1,20	2000	1000	3,240	6,480
1,20	2000	1250	3,240	8,100
1,20	3000	1000	3,240	9,720
1,20	3000	1250	3,240	12,150
1,50	2000	1000	4,050	8,100
1,50	2000	1250	4,050	10,125
1,50	3000	1000	4,050	12,150
1,50	3000	1250	4,050	15,188
2,00	2000	1000	5,400	10,800
2,00	2000	1250	5,400	13,500
2,00	3000	1000	5,400	16,200
2,00	3000	1250	5,400	20,250
2,50	2000	1000	6,750	13,500
2,50	2000	1250	6,750	16,875
2,50	3000	1000	6,750	20,250
2,50	3000	1250	6,750	25,313
3,00	2000	1000	8,100	16,200
3,00	2000	1250	8,100	20,250
3,00	3000	1000	8,100	24,300
3,00	3000	1250	8,100	30,375
3,17	2000	1000	8,559	17,118
3,17	2000	1250	8,559	21,398
3,17	3000	1000	8,559	25,677
3,17	3000	1250	8,559	32,096
4,00	2000	1000	10,800	21,600
4,00	3000	1000	10,800	32,400
4,00	3000	1250	10,800	40,500
4,76	2000	1000	12,852	25,704
5,00	2000	1060	13,500	28,620
